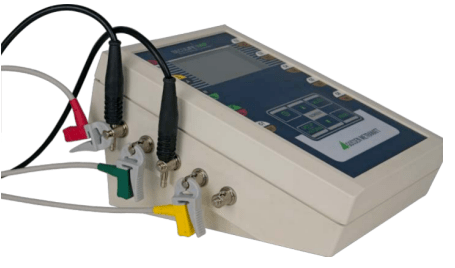

SECULIFE BP PRO——多參數模擬器
用于測試患者監護儀的模擬器，可選峰值壓力檢測
· 同步有創血壓輸出
· ±1%的壓力讀數精度
· ECG輸出完整NSR波形
· 數字壓力包絡偏移置零
· 多功能連接
· 小巧，手持，輕便
· 可編程
盡管體積很小，但這款多參數模擬器在真實的輸出性能上毫不妥協。
可以為不同的無創血壓計生產商提供偏移置零功能是這款產品的特點之一。通過數字和圖形顯示所有壓力值。此外，還可以對BP波形進行特寫。

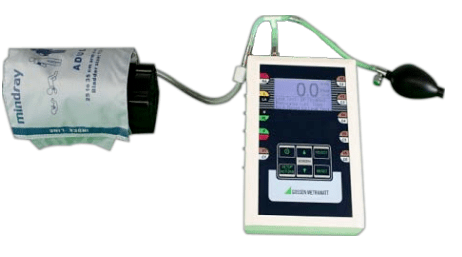

再者，你可以執行標準的壓力泄露測試。待監測系統和模擬器的壓力輸入端連接，然后系統提供壓力，模擬器測量并顯示壓力值

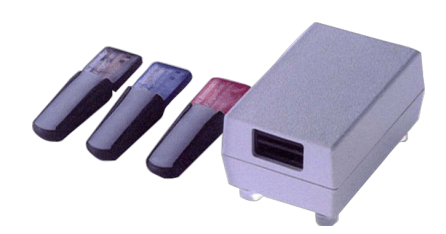

SECULIFE | BPPRO使用7-pin的Mini-DIN線纜連接SpO2模擬器和外部的血氧計模塊（SECULIFE | PULS Oximeter Module）。這樣通過吸收測量可以顯示血氧飽和度。
包含的配件
1 操作說明書Operating Instructions
1 攜帶包Transport case
1 電池Battery
1 電源 (model U.S.)
1電源Power support (model EU)
技術參數
設備:
尺寸及材質 | 17,8 x 12,7 x 10,2 cm/ABS塑料 |
重量 | < 3 Lbs (< 1,36 kg) |
面板 | 聚碳酸酯 |
使用溫度 | 15 to 40 °C |
存儲溫度 | -20 to 65 °C |
常規 | |
顯示 | LCD 圖形化顯示 128 x 64 像素 |
背光式 | 是 |
Lead Test Terminals | No |
RS232 | 是 |
供電 | 6 x 1,5 V AA |
Battery Eliminator | Yes |
功能:
ECG-NSR | Yes |
Leads | 10 |
Rates | 4 |
Amplitudes | 1 |
QRS Interval | Adult, Neonatal, Hypertensive, Hypotensive |
ST Segment Elevation | No |
ECG-Performance | Yes |
Sine Waves | 3 |
Square Waves | 2 |
Triangle Waves | 1 |
Pulse Waves | - |
Respiration | Yes |
Rate | 4 |
Baseline | 1 |
Delta Impedance | 1 |
NIPB | Yes |
Rates | 80,94 BPM |
Pressure Output | ±500 mm Hg |
Special Modes | Yes |
SpO2 Simulation | With Seculife OX |
Lead Test | Yes |
Manometer | Yes |
Pacemaker | Yes |
Arrhythmias | 6 |
Blood Pressure | 1 |
Temperature | YSI 400/700 0, 24, 30, 37, 40 °C (± 0.1 °C Accuracy) |
更多信息:
BLOOD PRESSURE / INVASIVE BLOOD PRESSURE | ECG NSR / EKG PERFORMANCE | ||
Blood Pressure: | ECG-NSR | ||
Range | ±500 mm Hg 20 °C | Rate | 30, 60, 120, 240 BPM (±1% accuracy) |
Accuracy | ±(1% of Reading + 0.5 mm Hg) | Amplitude | 2,75 mV (±2% accuracy) |
Rate | 80, 94 bpm (synched to ECG) | ||
Impulse accuracy | ±1% | ||
ECG-Performance | |||
Invasive Blood Pres.: | Sine Wave | 10, 60, 100 Hz | |
Static pressure | -10, -5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 250, 300, 320, 400 mm Hg | Square Wave | 0,125; 2000 Hz |
Accuracy | ±(1% Full Range ±1mm Hg) or ±(2% Setting + 2mm Hg) | Triangle Wave | 2000 Hz |
Impedance | 300 Ohm (±10% accuracy) | Rate Accuracy | ±1 % |
Sensitivity | 5 or 40 μV/V/mm Hg | Amplitude | 2,75 mV (+/- 2% accuracy ) |
PACEMAKER WAVEFORMS | RESPIRATION | ||
Amplitude: | 3 mV (±10% accuracy) | Rate accuracy: | ±1 % |
Width: | 6 ms (±5 % accuracy) | Impedance delta: | Delta 3,0 Ohm (±10% accuracy) |
Baseline | 1000 Ohm (±5% accuracy) | ||
Ordering information
Description | Type | Order number |
Multi-parameter Simulator | SECULIFE BPPRO | M695P |
SECULIFE BPPRO, Bag, NIPB AD1, NIBP AD2, NIBP AD3, NIBP AD4, NIBP AD5 | SECULIFE BPPRO KIT | M695W |
Options
Description | Type | Order number |
Fetal/Maternal Simulation | Fetal/Maternal | Z695P |
Cardiac Output Simulation | Cardiac Output | Z695O |

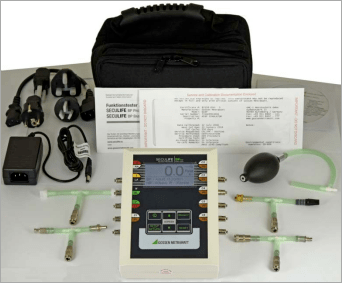

SECULIFE BPPRO KIT (M695W)
